Bitrix24 Integration

Install the SMSBAT Messenger app in Bitrix24 to send Viber and SMS messages directly from your Bitrix24 Contact Center. This guide covers step-by-step installation and configuration.

Overview

The SMSBAT integration with Bitrix24 allows you to:

• Send Viber messages to clients from Bitrix24
• Use SMS fallback when Viber delivery fails
• Manage messaging through the Bitrix24 Contact Center
• Connect SMSBAT as an Open Line channel

Prerequisites

• An active SMSBAT account with an API key
• A Bitrix24 account with administrator access
• An SMS sender name (From Name) registered with SMSBAT

Installation

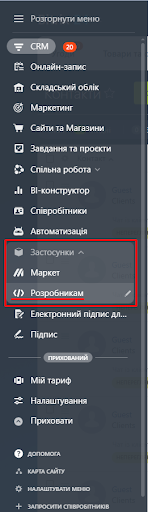

Step 1: Open the Developer Section

Navigate to Applications > Developers in your Bitrix24 menu.

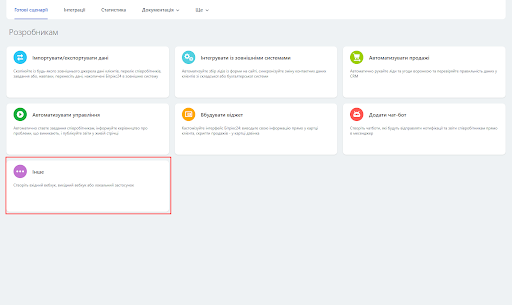

Step 2: Go to the “Other” Tab

In the developer section, switch to the Other tab to find additional application types.

Step 3: Select “Local Application”

Choose Local Application from the available options.

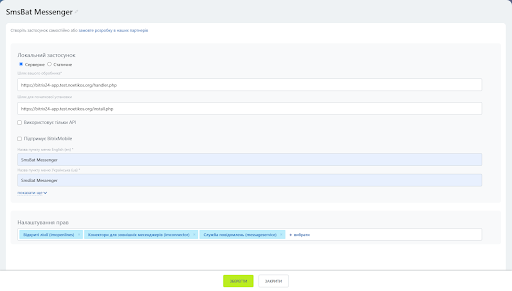

Step 4: Configure Application Settings

Fill in the following application settings:

Parameter	Value
Application type	Server
Handler URL	https://freshchats.ponderacode.com/handler.php
Initial setup URL	https://freshchats.ponderacode.com/install.php

Set the following permissions:

Permission	Code
Open Lines	imopenlines
External messenger connectors	imconnector
Message service	messageservice

Step 5: Save the Application

Click the Save button to register the application.

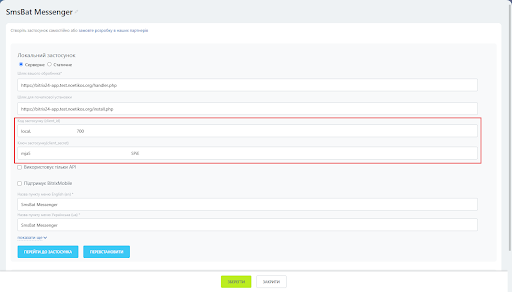

Step 6: Copy Application Credentials

After saving, Bitrix24 will generate unique credentials for the application:

• client_id - Application code
• client_secret - Application secret key

!!! warning “Important” Copy and save both client_id and client_secret values immediately. You will need them in the next step.

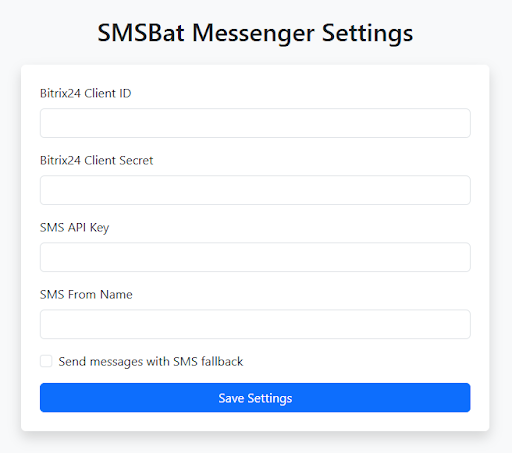

Step 7: Open the Application Settings

Click the Go to Application button to open the SMSBAT Messenger Settings page.

Fill in the following fields:

Field	Description
Bitrix24 Client ID	The client_id from the previous step
Bitrix24 Client Secret	The client_secret from the previous step
SMS API Key	Your personal API key from SMSBAT
SMS From Name	The sender name for outgoing messages
Send messages with SMS fallback	Enable to use Viber + SMS fallback delivery

!!! info “SMS Fallback” When Send messages with SMS fallback is enabled, messages will be delivered via both Viber and SMS channels. If disabled, messages will be sent via Viber only.

Click Save Settings to apply the configuration.

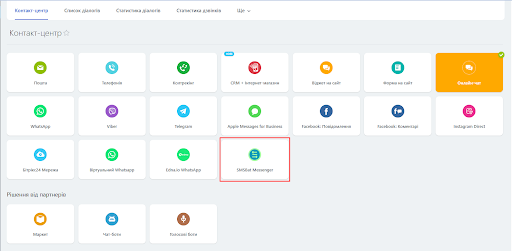

Step 8: Activate in Contact Center

Navigate to the Contact Center section in Bitrix24 and activate the SMSBat Messenger channel.

Step 9: Start Using

After the setup is complete, you can start sending messages to clients through the SMSBAT Messenger channel in your Bitrix24 Contact Center.

Settings Reference

Setting	Description	Required
Bitrix24 Client ID	OAuth application code from Bitrix24	Yes
Bitrix24 Client Secret	OAuth application secret from Bitrix24	Yes
SMS API Key	Your SMSBAT API key	Yes
SMS From Name	Sender name displayed to recipients	Yes
Send messages with SMS fallback	Enable Viber + SMS fallback delivery	No

Troubleshooting

Application is not visible in Contact Center

1. Verify the application was saved successfully in Step 5
2. Check that all required permissions (imopenlines, imconnector, messageservice) are granted
3. Try refreshing the Contact Center page

Messages are not being sent

1. Verify your SMS API Key is correct in the application settings
2. Check that the SMS From Name matches your registered sender name
3. Ensure the recipient’s phone number is in the correct format
4. If using SMS fallback, verify your SMSBAT account has SMS credits

Application credentials lost

If you lost your client_id or client_secret, navigate to Applications > Developers, find the SMSBAT Messenger application, and view its details to retrieve the credentials.

Next Steps

• SMSBAT API - Learn about sending messages via API
• Cascade API - Set up multi-channel message delivery
• Message Types - Explore available message types
• Fallback Strategies - Configure fallback delivery
